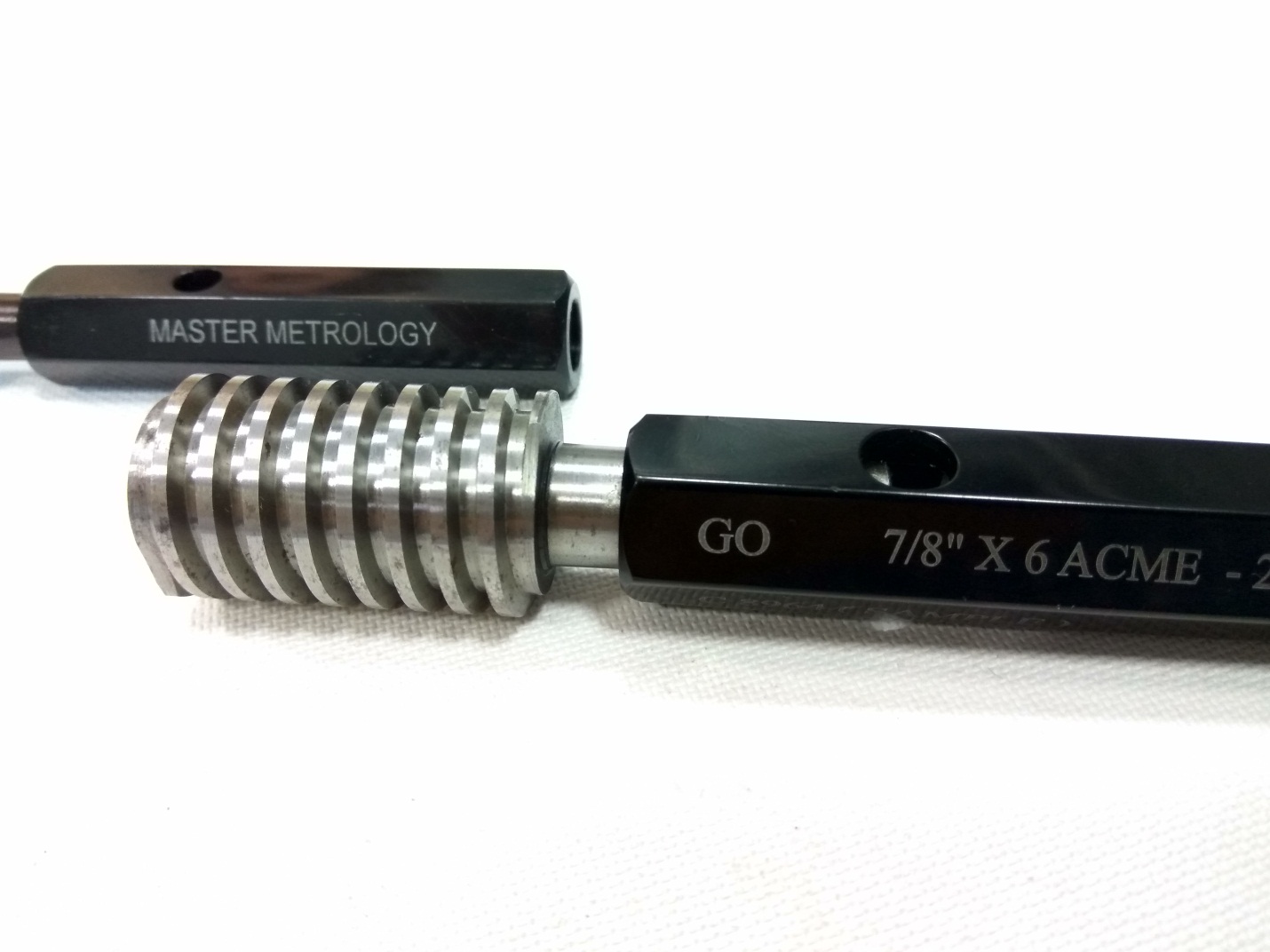

ACME thread gauges are designed for measuring trapezoidal threads, commonly used in power transmission and motion control applications. These gauges ensure precise thread profiles and dimensional accuracy.
Standards:
• Basic Dimension and Gauging Practice:
ANSI/ASME B1.5:1997
Applications:
• Suitable for both general-purpose and
centralizing ACME threads.
